Vertical Title
Horizontal Title
Orders
Min
Max

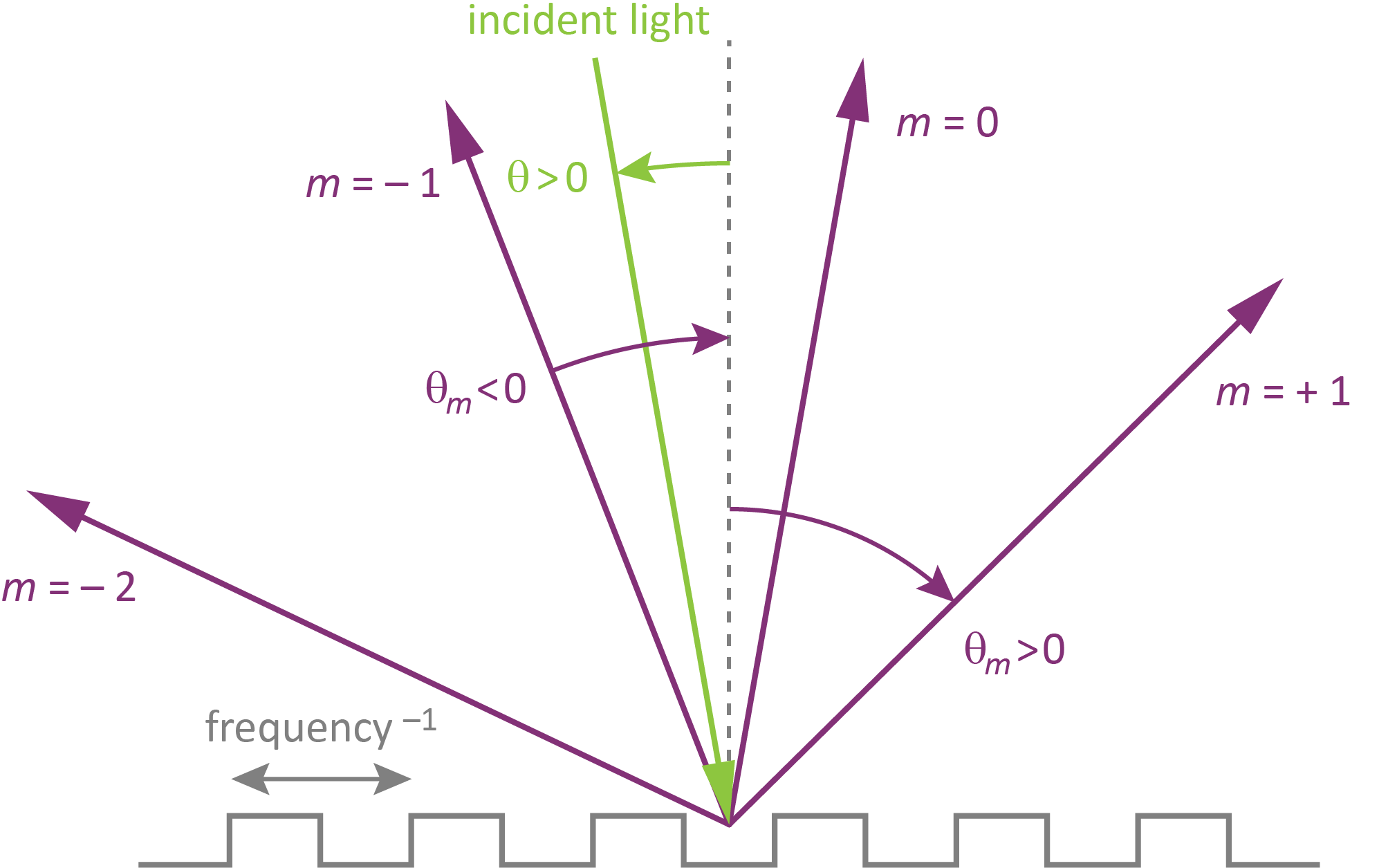

- θ = angle of Incidence (deg)
- θm = angle of diffraction of the mth order (deg)
- λ = wavelength of light (nm)
- τ = pulse delay time (ps)
- s = perpendicular separation between two gratings used to compress a pulse (m)
- dθm/dλ = angular dispersion, or change in angle of diffraction with wavelength (deg/nm)
- (1/s)dτ/dλ = temporal dispersion, or change in pulse delay time with wavelength per meter of separation between two identical, parallel gratings (ps/nm per meter)
